This guide covers the mechanics of how a concrete pump works, the parts that matter, and the differences between line pumps and boom pumps, so you can make an informed call before booking one.
How the Pump Moves Concrete
A concrete pump is a hydraulic machine that pushes wet concrete through a sealed delivery line from the mixer truck to the pour point. Two hydraulic cylinders work in alternation: one draws fresh concrete in from a hopper while the other forces concrete out into the pipework. A valve, usually an S-valve or rock valve, switches between them in a continuous rhythm so the flow never stops.
That steady rhythm keeps the mix homogeneous, prevents segregation, and avoids partial setting inside the line.
The Key Components
Every concrete pump shares the same core parts:
- Hopper: receives concrete from the mixer, with an internal agitator to prevent blockages.
- Twin hydraulic cylinders: generate the pressure that drives the concrete forward.
- S-valve: the switching mechanism that alternates flow between the cylinders.
- Delivery line: rigid steel pipes and flexible rubber hoses that carry the concrete to the placement point.

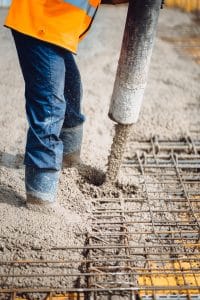

- Hose end: the flexible final section, manoeuvred by the operator to direct the pour.
Mix design matters as much as the equipment. A stiff mix will block the line; an over-wet one will separate under pressure. Structural grades such as C30/C35 concrete are engineered with a balanced slump and aggregate size specifically to flow cleanly through pumping equipment.
Line Pumps
A line pump is the more compact option, mounted on a trailer or small lorry. Interlocking steel pipes and flexible hoses laid along the ground carry concrete to the pour point. With no overhead arm, the kit fits where a larger vehicle could never reach.
Line pumps typically manage horizontal reaches of up to 150 metres and outputs around 70 cubic metres per hour, making them the default choice for residential and smaller commercial work, especially concrete pumping for tight access sites such as back gardens, basements, and terraced streets.
Boom Pumps
A boom pump is a larger, lorry-mounted machine fitted with a folding articulated arm. The delivery pipe runs along the boom, and the operator positions the hose end by remote control, clearing obstacles in a single movement rather than laying ground-level pipework.
Boom sizes are quoted by reach. Smaller units extend to 24 metres; larger models reach 42 metres or more, enough to clear a three storey building. Output rates are considerably higher than line pumps, making boom pumps the economical choice for large slabs, suspended floors, and multi-storey pours.
Line Pump vs Boom Pump at a Glance
| Feature | Line Pump | Boom Pump |
|---|---|---|
| Setup | Ground-level pipework | Articulated arm lifted over site |
| Typical reach | Up to 150m horizontal | 24m to 42m, including vertical |
| Output | Up to around 70 m³/hour | 20 to 100 m³/hour |
| Best suited to | Smaller pours, restricted access | Large volumes, elevated pours |
| Access required | Small vehicle footprint | Needs road space for the truck |
| Typical applications | Driveways, basements, domestic foundations | Commercial slabs, upper floors, raft foundations |
Choosing the Right Pump
Selection comes down to three variables: concrete volume, delivery distance, and whether the pour is horizontal or requires lift. Domestic jobs and awkward access favour a line pump. Larger, faster, or elevated pours justify a boom pump through the hours saved. Anything in between benefits from a site assessment by a professional concrete pumping service, who can match kit to conditions before the day of the pour.
Safety on Site
Pumps operate at considerable pressure, and site preparation matters. The Health and Safety Executive publishes guidance on working safely with concrete, covering handling, skin exposure, and respirable dust. In practice, the pump needs firm level ground, a clear hose route, and, for boom pumps, no overhead cables within the arm’s arc. A short site visit beforehand eliminates most avoidable problems.
The Bottom Line
A concrete pump is a precision hydraulic system that replaces manual placement with controlled, continuous flow. Line pumps excel in tight, low-level work. Boom pumps win on volume, speed, and vertical reach. Matching the pump to the job is what separates an efficient pour from a costly one.
